Corsa Strasbourg

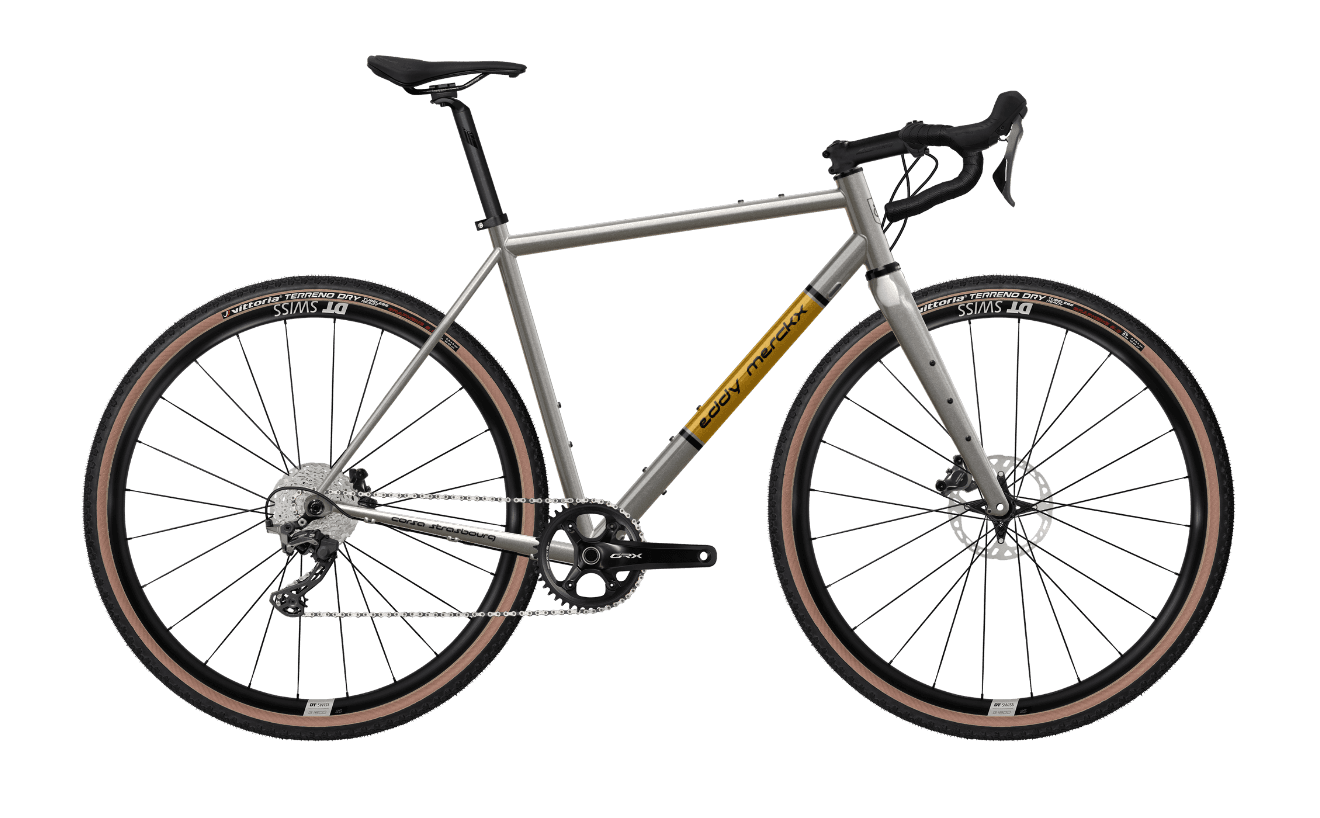

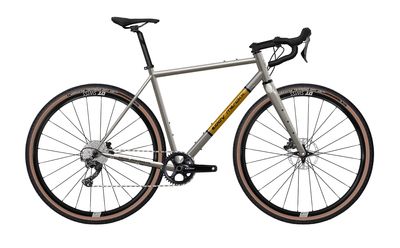

Corsa Strasbourg GRX800 1x12 SCO01As(XS)

The assembly of the product may differ from the photo. Be sure to check out the specifications.*
  • XS
  • S
  • M
  • L
  • XL
What is my size?
€3,599.00
Loading
Checkout is not available in your country. Contact your local dealer to order

Corsa Strasbourg

The Corsa Strasbourg is a steel gravel beast. It's the right companion for demanding off-road rides. Made in Belgium with Columbus tubes.

Read more about Corsa Strasbourg

Corsa Strasbourg

Double / Triple butted tubes

With Double or Triple butted tubes, we're talking about two or three different tube thicknesses. The more tube thicknesses are used, the lighter the bike will be. The places where the tubes are welded together should be sturdier than in the middle, for example. Making this middle section thinner also saves weight.

Double / Triple butted tubes

Universal Derailleur Hanger (UDH)

Every Eddy Merckx Corsa bicycle is equipped with a Universal Derailleur Hanger (UDH). The UDH is a standardised solution for attaching a bike's derailleur to the frame.

The UDH makes it easy to replace your derailleur, whatever brand it is. In addition, the hanger ensures better and more consistent shifting behaviour.

Universal Derailleur Hanger (UDH)

Gravel frame

The Strasbourg's geometry is designed to handle the most challenging gravel rides. The low centre of gravity gives the bike a very smooth and controlled ride, allowing you to tackle rough terrain with confidence.

Tyres up to 48 mm fit on the Corsa Strasbourg.


Gravel frame

Columbus steel

For the Corsa bikes, we use a mix of Columbus Zona and SL tubes.

The SL in Columbus 'SL' stands for 'Supper Leggera', or super light.It is the most famous Columbus set. Designed for high peformance. They are double butted seamless tubes that are cold worked. They are extremely resistant to metal fatigue.

Columbus Zona tubes are very strong and durable: they have excellent resistance, are reliable and well resistant to metal fatigue. Yet the weight of this type of tubes is relatively low. The steel consists of Triple/Double butted 25CroMo4 alloy seamless tubeset

This mix makes for a fast, agile and comfortable bike. A bike that reflects the typical characteristics of steel bikes resilience, robustness and durability.

Columbus steel

Handmade in Belgium

"Corsa" has been the quality label for high-quality steel bikes since Eddy Merckx Bikes was founded in 1980. Every Corsa is handmade in Belgium by Johan Vranckx. Johan has been working for Eddy Merckx since he was 16 and has elevated welding to an art over the years.

Handmade in Belgium

Specificaties

  • Brand Eddy Merckx
  • Model Corsa Strasbourg
  • Design code CUSTOM
  • Size XS
  • Range Corsa
  • Frame Strasbourg Corsa, Columbus SL-Zona tubing, TA 12x142, BSA
  • Fork 4ZA Oryx Disc 12TA 7E7/SCO01As
  • Groupset Shimano GRX800 1x12sp
  • Crank Shimano GRX 800, 172mm, 42T
  • Cassette Shimano XT, 12s, 10-45T
  • Rear Derailleur Shimano GRX 800, 12sp, Medium Cage (45T)
  • Handlebar Ritchey Venture Max II, 420 mm
  • Stem Forza Stratos, 80 mm, Black Glossy
  • Seatpost Forza Cirrus, Carbon-Alloy, 10mm Offset, 350mm, 27,2mm
  • Saddle Selle Italia Model Y, Black
  • Front Wheel DT Swiss G1800 Spline, TA 12x100mm, Tubeless Ready// 25mm Deep, 24mmm Internal Width
  • Rear Wheel DT Swiss G1800 Spline, TA 12x142mm, Tubeless Ready, 25mm Deep, 24mm Internal Width
  • Outer Tyre Vittoria Terreno Dry TLR, 700x47c, Folding-TLR, Tan Wall
  • Configurable
    • Specifications
    • Colors
  • Base Color PC Clear Coat Glossy
  • Color 2 Autumn Grey, 236
  • Color 3 Honey Gold Metallic, 397
  • Color 4 Black(V8)
  • Paint Finish Glossy
  • Sex
    • Men
    • Women
  • Weight Limit 110 KG (Bike included)
  • EAN 5400928597906
  • Niveau Essential Series
  • Pedals Not included **
  • technologyHighlights

    Corsa Strasbourg

    Corsa - From €3,599.00

    Read more about Corsa Strasbourg

    XS S M L XL
    A 760 785 810 835 860
    B 470 495 520 545 570
    C 530 550 570 592 615
    D 115 140 165 192 215
    E 74.5 74 74 74 73.5
    F 70.8 70.8 70.5 70.5 70.5
    G 435 435 435 435 435
    H 75 75 75 75 75
    I 1024 1041 1065 1088 1107
    J 791 814 836 862 884
    S 546 569 591 617 639
    R 379 387 401 415 426

    Check stock

    Can't get that new bike soon enough? Here you can find a dealer that has your dream bike in stock.
